7 kV Isolators |
|
|
Best-in-Class Isolation
Voltage
IL700V-Series isolators have been upgraded to a remarkable 7 kVrms (9.9 kVpk),
making them the toughest isolators available.
A Full Range
of Configurations
All three standard four-channel IL700V-Series isolator configurations are in stock
for immediate delivery, with two- and five-channel versions coming soon:
| Model |
Isolator
Channel
Config. |
Isolation |
Max.
Op.
Temp. |
Availability |
| IL715VE |
4/0 |
7 kV |
125
°C |
Stock |
| IL716VE |
2/2 |
| IL717VE |
3/1 |

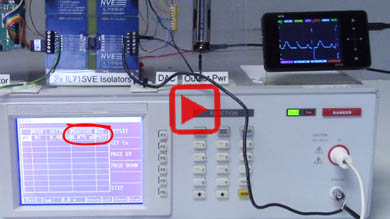

8.4 kV for One Second
We demonstrate that the parts withstand 8.4 kV for one second, as required
for a 7 kV isolation rating:

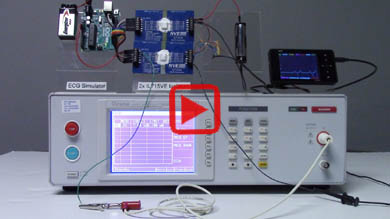

7 kV for One Minute
We also demonstrate that the parts withstand 7 kV for one minute, and unlike most
tests, we show the isolators keep operating throughout the test:
IL715VE
