In this Issue
Advanced Proximity Switches
VDE Renewal
Advanced
Proximity Switches
Today
were launching the worlds most advanced magnetic switch sensors with
these best-in-class features:
No double switching artifacts
Single or dual thresholds
Up to 150 °C
Up to 30 V supplies
20 mA output drive
>1 tesla field immunity
Advanced Technology
ADA-Series magnetic switch sensors use advanced sensing elements to eliminate
double switching artifacts in applications such as cylinder position sensing.
Single or Dual Thresholds
Parts are available with single or dual operating point thresholds. The two-threshold
version can be used to detect speed and direction, control end-of-travel speed,
or tune ultraprecise switching thresholds.
Rugged
The robust parts have an extended 150 °C temperature range for harsh
industrial environments and operate from 4.5 to 30-volt power supplies. The sensor
elements can withstand magnetic fields up to 1400 mT without their operation being
disturbed, making them immune to the effects of high external currents or strong
motor magnets.
Applications include:
Pneumatic cylinder position sensing
Proximity sensing
Speed sensing
Rotation sensing
Available Now
Three part types are in stock and available now:
Evaluation Board
An
evaluation board
allows easy testing an ADA32124-00E two-threshold sensor. The board includes the
sensor and LEDs to show the states of the two outputs. The board can be powered
with a 4.5 to 30-volt supply.
Demonstration

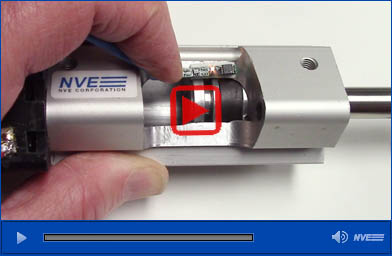

This video demonstrates smooth, crisp, cylinder position detection with no double
switching:
Download the datasheet »

VDE Renewal
NVE
recently passed a rigorous site inspection for a renewal of our VDE Überwachte
Fertigungsstätte (Manufacturing Site Approval).
With up to 7 kVrms isolation voltage under the EN IEC 60747-17 (VDE 0884-17):2021-10
gold standard, NVE isolators are the toughest in the world.
 |
|
