Inexpensive
Microcontroller Interfaces |
|
|
With their high output signals, GMR sensors are easy to interface to inexpensive
eight-bit microcontrollers. The ATtiny85 is a popular choice because it has an
available differential amplifier with a selectable gain of 20; has I2C, PWM, and
digital I/O; it has an internal temperature sensor that can be used for temperature
compensation in critical applications; and costs less than $1.00.
The gain of 20 is ideal for NVE GMR analog sensors. AALSeries sensors, for example,
have a maximum output of 45 mV/V, so a gain of 20 provides 900 mV/V, or nearly
full scale. That means all 10 bits of microcontroller ADC resolution are used.
The ATtiny85 only has eight pins microcontroller, but thats enough to interface
to the sensor and provide digital and PWM outputs.
Microchip offers a development
environment and evaluation kits, and there are several single-board computers
such as Trinket and Little Wire boards.
Heres a typical interface using a Trinket board:

AA-Sensor Interface to Low-End Microcontroller

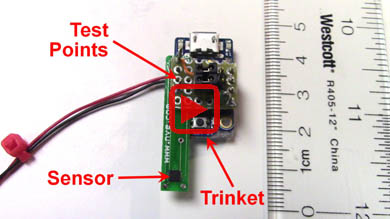

Heres a live demonstration
of the circuit above, including a simple Arduino program to
amplify, offset correct, and temperature compensate the outputs:
|
 |
|
In
the News:
Nondestructive Evaluation |
|
|
With their high sensitivity and low noise, NVE analog sensors are popular for
nondestructive evaluation.
Here are some examples of publicly-available papers describing applications:
Visit our Case Studies
Webpage for More >
Download our Analog
Sensor Datasheet >

|
 |
|
