A Simple Silicon Carbide H-Bridge Arduino Shield
Precision TMR Toroid Current Sensor
Webinar on H-Bridges
H-Bridge Controlled Pitch-Pipe Organ
----

----
Datasheet Updates
Most Isolator datasheets and our Application Note on Isolator High-Voltage Standards have been updated for VDE 0884-17 certification, increased Working Voltages, and Intrinsically Safe certification.
----

----
Presentation
NVE Spintronic Device Scientist Mst Nazmunnahar is presenting a paper, “Discovery of a new high-Tc ferromagnet in Fe-rich Ce – Fe – Zr alloys” at the Conference on Magnetism and Magnetic Materials, November 2.

NVE Presentations »
----

----
Holidays
NVE will be open on Veterans’ Day (Friday, November 11).
Cornucopia

We will be closed Thursday and Friday, November 24 and 25 for the Thanksgiving holiday.

Product support is available 365 days a year, including holidays, at:
sensor-apps@nve.com
or
iso-apps@nve.com
----
NEW! Isolated DC-to-DC
Boost Convertors

NVE has expanded its revolutionary IsoLoop® ILDCxxVE line of DC-to-DC convertors with 3.3-to-5 and 3.3-to-6 volt boost versions in addition to the original 3.3-to-3.3 volt version:

   Part Number    Package Input
 Voltage
Output
 Voltage
 ILDC11VE  SOIC16W  3.3 V 3.3 V
 ILDC12VE [new!] 5 V
 ILDC13VE [new!] 6 V

High Isolation
ILDCxxV parts are rated at 4 kV isolation under the new
VDE 0884-17 standard.
  ILDC1x
ILDC1x functional diagram.


Adequate Power
250 milliwatts of fully-regulated power is enough current for an isolated RS-485 bus or high-side MOSFET drivers.

Low Ripple
Less than one millivolt peak-to-peak ripple means low noise and reliable systems.

Soft Start
A smooth output ramp-up with a minimum two millisecond startup facilitates power sequencing such as allowing control electronics to start before an H-bridge is powered.

Rugged
A 175 C maximum junction temperature allows full power up to 125 C ambient with no derating. Integrated short-circuit protection prevents excessive power dissipation.

Minimal Parts Count
Three inexpensive bypass capacitors are the only external parts required. No additional regulation is needed and there is no minimum load. Frequency hopping and shielding quash EMI and make ferrite beads unnecessary.

Ultraminiature Packages
The JEDEC-standard SOIC16 package provides a remarkable 4 kV isolation in accordance with the new VDE 0884 standard. The world’s smallest isolated DC-to-DC convertors—3 x 5.5 mm DFN6 parts—are coming soon.

Evaluation Boards
ILDC-Series evaluation boards have everything needed to operate an ILDC1x, which is just the part and three bypass capacitors. There are also LEDs to show the convertor is operating, and screw terminals for easy connections. No ferrite beads or external regulators are necessary.

Immediate Delivery
ILDC-Series parts and evaluation boards are in stock for immediate delivery.

ILDC1x datasheet »

Demonstration video »

Buy Online

Best-in-Class Isolator Working Voltages

NVE is continuously improving our patented ceramic-polymer composite isolator barrier process. These isolators have the best Working Voltages in the industry, and now they are certified for Working Voltages of at least 600 Vrms (849 Vpk) under VDE 0884-17, the new “gold standard” for isolators.

Under VDE 0884-17, Working Voltage ratings are determined from Time Dependent Dielectric Breakdown (TDDB) testing, and are an important figure of merit for long-term reliability.

Our best-in-class V-Series isolators are rated for a remarkable 1200 Vrms (1798 Vpk) Working Voltage.

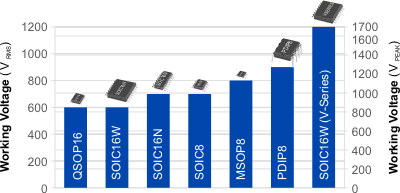

This chart summarizes the new ratings:
Isolator Working Voltages

Other best-in-class barrier specifications are:
  • Isolation voltage: up to 6 kVrms(V-Series versions)
  • Barrier resistance: 100 teraohms
  • Surge rating: 8 kV
  • Barrier life: 44000 years

Download isolator datasheets »

Application Bulletin: Isolator High Voltage Safety Standards »

Buy Online
