The DC001-20E is an ultraminiature 3.3 V regulator designed for harsh, noisy environments where immunity to large voltage transients and high input voltages are required. These regulators protect the sensitive electronic components while providing a stable regulated supply.
Features:
- 3.3 V Regulated Output and 1.25 V Bandgap Output
- Input Voltage to 36 VDC
- 175 degrees Celsius
- Can Adjust Voltage with External Resistors
- Reverse Input Protection
- Excellent Immunity to Transients and ESD

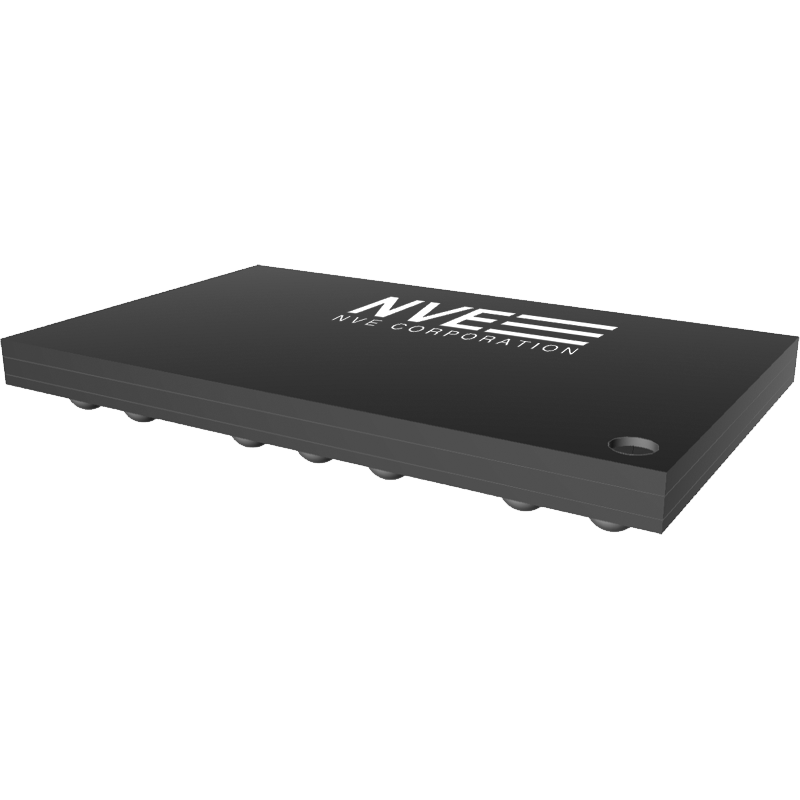

- 1.1 x 1.8 mm Wafer-Level Chip Scale Package
