Wide-Body, Low-Power
Isolated CAN Transceiver |
|
|
The newest member of NVEs ground-breaking isolated CAN transceiver family is the wide-body, low-power IL41050TAE. The new part is
in stock for immediate delivery.
The wide-body 16-pin SOIC package offers a full 8 mm external creepage distance and 300 Vrms working voltage.
The new A versions boast 10% lower quiescent and dynamic supply current than the original IL41050T version while matching speed and other specifications.
The new part broadens NVEs unique family of isolated CAN transceivers:
Part
Number |
Max. Quiesc. Supply (Rec.) |
Max.
Supply (Dom.) |
Typ. Loop Delay |
CDM
ESD |
Package |
IL41050
T-3E |
13 mA |
78 mA |
180 ns |
+200 V |
0.15" SOIC-16 |
IL41050
TE |
13 mA |
78 mA |
180 ns |
+200 V |
0.3" SOIC-16 |
IL41050
TA-3E |
12 mA |
70 mA |
180 ns |
+500 V |
0.15" SOIC-16 |
IL41050
TAE |
12 mA |
70 mA |
180 ns |
+500 V |
0.3" SOIC-16 |
Advanced features allow unmatched versatility and reliable bus operation. Unpowered nodes do not disturb the bus, and a unique nonvolatile programmable power-up feature prevents unstable nodes. The devices also have a hardware-selectable silent mode that disables the transmitter.
A narrow-body version, the IL41050TA-3E, was introduced in May 2012, and provides a remarkably small footprint.
Product Datasheet >
|
|
|
|
Isolators in Stock |
|
|
No Allocation Here!
NVE and its distributors have virtually all Isolator and most other part types in stock for same day shipment and next-day delivery.
While other manufacturers cut capacity during the downturn, NVE expanded and added equipment.
Buyers are reporting lead times of 14 weeks or more for other companies components.
Call (800) GMR-7141 or buy online.
|
|
|
|
Labor Day Application Corner |
|
|
You CAN Save Labor

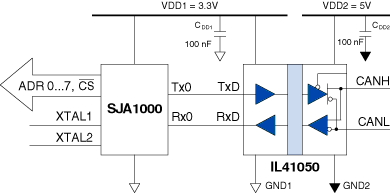

A simple, single chip isolated CAN interface saves labor compared to designing and building a multi-chip solution with an old-generation CAN transceiver and seperate isolation:
IL41050-family parts integrate transceiver and isolation functions in a single device with improved performance and reduced chip count compared to discrete transceivers and traditional optocouplers.

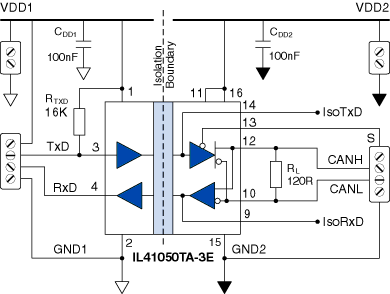

A detailed reference circuit is as follows:
For more on isolating CAN, watch this technical
video:
|
|
