Record Sales
NVE reported record total revenue and record product sales for the quarter ended June 30, 2014.

NVE Investor Relations >

New Sensor Patent
NVE has been granted U.S. patent number 8,773,821, titled “Magnetoresistive-based mixed anisotropy high field sensor.”

Links to NVE patents >

New Products
High Voltage Isolators
(see story at right).

QSOP Isolators

Document Updates
IL700V-Series High Isolation Voltage Isolator Datasheets

Isolation Products Short-Form Catalog Rev. P (includes new High Voltage Isolators)

AB-2: High Voltage Testing Standards Overview

AAV004-02E Isolated Current Sensor Datasheet Rev. C (isolation voltage spec increased to 2500 Vrms)

Voicemail Playlist
Our telephone background music is “High Voltage,” by AC/DC to mark the introduction of “V-Series” high-voltage Isolators (story at right).
NEW! 5 kV Isolators
Award-winning IsoLoop® IL700/ IL200-Series Isolators and IL3000-Series isolated transceivers are now available in 5 kVrms isolation “V-Series” versions with best-in-class high-voltage performance.

5kV Isolators

V-Series Isolators are 100% tested to a jolt-worthy 6 kVrms (8.5 kVpeak), and to a best-in-class 1000 Vrms Working Voltage per VDE 0884-10.

All IsoLoop Isolators feature a revolutionary ceramic/polymer composite isolation barrier provides a remarkable 44000 year extrapolated life and barrier resistance of more than 1014 ohms.
V-Series specifications include:
  • 5 kVrms isolation (1 minute) per UL 1577
  • 1000 Working Voltage (line voltage) per VDE 0884-10
  • -40°C to +125°C operating temperature
  • >1014 ohm barrier resistance
  • Wide-body packages with True 8 mm creepage
Applications include:
  • Medical instruments
  • Smart-grid interfaces
  • Motor drives
  • Power supplies

A number of V-Series part types are in stock for immediate delivery, with more being added.

Product Datasheets >
Buy Online

Application Corner
Isolating SPI With V-Series Isolators
Isolating Serial Peripheral Interface (SPI) busses eliminates ground loops between analog and digital sections and improves resolution by reducing noise.

With their high isolation voltage, high speed, and high transient immunity (see story above), NVE’s new IL700V-Series isolators are ideal.

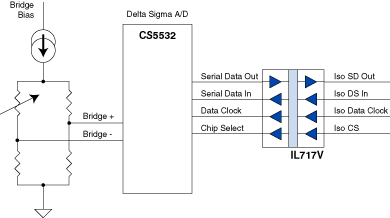

Here’s an illustration of a single-channel isolated delta-sigma with 5 kV isolation and up to 1000 volts Working Voltage (line voltage):

Isolated SPI Interface
Isolated Delta-Sigma ADC With an IL717V Isolator
