Intrinsically-Safe Isolators
Pitch Pipe Organ with a Smart Angle Sensor
A Pneumatic Harmonica Player
Introducing the ACT001 Inline Current Sensor
----
Intrinsically-Safe Isolators

  ATEX / IECEx Logo

In May a number of NVE isolators were certified under stringent ATEX and IECEx requirements for use as isolating components between intrinsically safe circuits (IS-to-IS) in explosive atmospheres.

Non-Ignition
Certification ensures that when used within recommended entity parameters, these isolators will not become an ignition point when short circuited or if connected circuitry fails.

Worldwide Certification
ATEX Equipment Directive is a European certification, while IECEx is accepted in many other countries, including the U.S., China, and Japan.

NVE has both ATEX and IECEx certifications, so the isolators can meet intrinsic safety requirements almost anywhere in the world.

Widest Operating Range
Intrinsically Safe “Zones” are defined as where dust or gas can create hazardous conditions. Components in an IS zone cannot provide a source of ignition. Energy to components in IS zones must be limited, and IS-zone power supplies must be in the Safety Extra Low Voltage (SELV) range of 24 to 60 volts.

Unlike other isolation components, NVE isolators can operate over the full SELV range.

Three Intrinsically Safe Families
Three isolator lines have Intrinsically Safe versions:

IL7xxVE-Series isolated datacouplers are rated at best-in-class 6 kVrms Reinforced Isolation and 1.2 kVrms Working Voltage under the stringent VDE V 0884-11 standard, providing the ultimate in rugged safety.

The IL3685VE isolated RS-485 transceiver is fully compliant with PROFIBUS and RS-485 standards and designed for harsh environments. In addition to being Intrinsically Safe they have 15 kV bus ESD rating, thermal shutdown protection and are hot-plug capable. They are also rated at best-in-class 6 kVrms Reinforced Isolation and 1.2 kVrms Working Voltage.

IL0xx-Series isolators are low power and Intrinsically Safe, reducing energy usage in hazardous areas or allowing more channels for a given power budget.
The IL7xxVE-Series and IL0xx-Series isolators are available in various channel configurations. Here is a summary of the Intrinsically-Safe parts:

Intrinsically-Safe Isolators
Part Type
(click for
more info)
 Channel Config-uration    Package      Features
IL711VE 2/0 Wide-body SOIC-16 6 kVrms Reinforced Isolation; 1.2 kVrms Working Voltage
IL721VE 1/1
IL715VE 4/0
IL716VE 2/2
IL717VE 3/1
IL011-3E 2/0 SOIC-8 Low
power
IL012-3E 1/1
IL015E 4/0 Wide-body
SOIC-16
IL016E 2/2
IL017E 3/1
  IL3685VE   RS-485 /  PROFIBUS  Wide-body SOIC-16 6 kVrms Reinforced Isolation;
15 kV bus ESD

Smoking the Competition

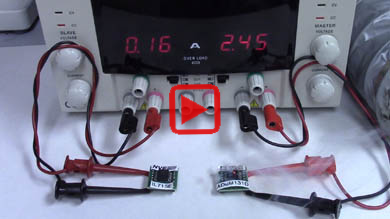

Here’s a demonstration of the Intrinsic Safety of NVE Isolators:


Download the Intrinsically Safe Application Bulletin »
