Noncontact Angle Sensors
AAT-Series
high-output, noncontact angle sensors measure rotating magnetic fields. Typical
applications include rotary encoders and motor shaft position sensors.
AAT-Series Sensor outputs are proportional to the supply voltage and peak-to-peak
output voltages are much larger than other sensor technologies.
Key features include:
• Tunneling Magnetoresistance (TMR) technology
• High bridge resistance for low power
• Large output signal without amplification
• Wide airgap tolerance
• Sine and cosine outputs for direction detection
• 0.5 degrees maximum angular measurement error
• Ultraminiature 2.5 mm x 2.5 mm x 0.8 mm
TDFN6
Product specifications are summarized as follows:
| Parameter |
Min. |
Typ. |
Max. |
Units |
Bridge
Resistance
(each resistor; 25°C) |
AAT001 |
600 |
1250 |
2500 |
kΩ |
| AAT003 |
20 |
40 |
60 |
Peak-to-Peak
Output
(Sin or Cos outputs; 25°C) |
130 |
200 |
|
mV/V |
Peak-to-Peak
Output
(Sin - Cos differential; 25°C) |
184 |
283 |
|
mV/V |
Angular Measurement
Error (fixed bias) |
|
|
0.5 |
deg. |
Required Applied
Magnetic Field Strength |
|
30 |
200 |
Oe |
Download
AAT-Series Datasheets >
|
|
|
Recent
Exhibitions |
|
|
Sensor+Test visitors

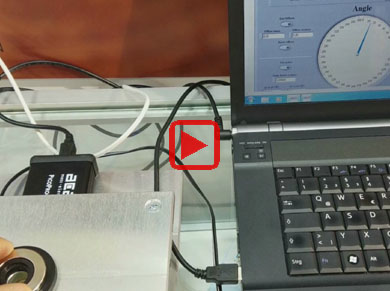

thrilled to live product demonstrations, including an AAT001 sensor with an analog
front end and PC interface:
|
|
