Earth Day April 22
With Earth Day coming up, we note that virtually all NVE parts are available in Pb-free, RoHS-compliant packages.

Most parts are also available in Sn-Pb plated versions for customers who don’t require RoHS and need tin-lead reliability or solderability.

RoHS
COMPLIANT


Good Friday
NVE will be closed for business Friday, April 2.
Supply Chain
No AllocationIn Stock. No Fooling.

Some component suppliers played a nasty April Fool’s prank by cutting capacity. Now their leadtimes are a joke.

We don’t think being out of parts is funny, and we’ve expanded and added equipment. NVE and its distributors have virtually all part types in stock.

Our extraordinary track record of on-time shipments has earned us new customers.

They may come for the leadtime but they stay for the parts.

Smaller. Faster. More precise. In stock. No fooling.

Call (800) GMR-7141, buy online, or find a distributor.

Exhibitions
PCIM Europe

PCIM Europe
NVE distributor HY-LINE Power Components will have NVE isolators, including the new IL41050 Isolated CAN Transceivers, at the Power Conversion Intelligent Motion exhibition. The show runs May 4 to May 6 in Nüremberg, Germany.

Application Corner

Foolproof Sensor Circuits

By Jay “Nobody’s Fool” Brown
April FoolVice President, Sensors

Thwart the jokers who short outputs and connect power supplies backwards.

The unique NVE DB002-02 IC provides short-circuit protection, reverse battery protection, automatic thermal shutdown, and Integrated transient protection, as well as signal processing, for virtually foolproof sensor systems.

The DB002-02 is designed to work with NVE’s AD1xx-Series GMR switch magnetic sensors or any current sourcing or CMOS/TTL output sensor element. Some customers even use the IC for inductive and photoelectric sensors.

Up to 300 mA sourcing and sinking outputs are provided. Integrated transient protection allows capacitive or inductive loads.

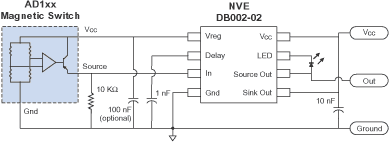

A typical circuit is illustrated below:

DB002 Illustrative Circuit

Foolproof Sensor Circuit

The LED is driven with 3 mA when the output is on. Short-circuit shutdown delay is set by the 1 nF capacitor. A 10 nF minimum bypass capacitor is recommended between Vcc and ground. Vreg is a regulated 5 V output to power the sensor or other components. A 100 nF bypass capacitor is recommended for Vreg in noisy environments.
