New Products
IL3022E Low-Cost Isolated RS-422 Transceiver

AAT006 Low-Field Angle Sensor

ADT002 Rotation Quadrant Sensor
----

----
New YouTube Videos
AAT/ Arduino/ html/ Chrome browser demo
Ampere’s Law and a Bipolar Current Sensor
Nanopower Sensor Demonstrator
ADT-Series TMR Rotation Sensors
----

----
Spring Forward
Spring Forward
Daylight
 Saving Time
begins Sunday, March 12. Set your clocks forward an hour.
----
NEW! IL3022E Low-Cost
RS-422 Transceiver


IL3022 Block DiagramThe IL3022E is a cost-effective galvanically isolated, high-speed, full-duplex bus transceiver.

The new device uses NVE’s patented IsoLoop spintronic Giant Magnetoresistance (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life, and the True 8™ wide-body package provides true 8 mm creepage in accordance with ISO60601. Features include:
  • 4 Mbps data rate
  • Full duplex
  • 600 VRMS working voltage per VDE V 0884-10
  • 2500 VRMS isolation voltage
  • 44000 year barrier life
  • Low EMC footprint
  • Thermal shutdown protection
  • 0.3" True 8™ mm 16-pin SOIC package

There are now nine members of NVE’s isolated digital transceiver family in various packages, including the unique QSOP and narrow-body packages, the industry’s smallest isolated transceivers:

Part
 Number
Bus Data
Rate
 (Mbps)
 Isolation
Rating
     Packages
 *NEW*
RS-422 4 2.5 kV SOIC-16
IL3085 RS-485 4 2.5 kV QSOP-16;
0.15" SOIC-16;
0.3" SOIC-16
IL3522 RS-422 40 2.5 kV;
6 kV
 0.3" SOIC-16
IL3585 RS-485 40 2.5 kV;
6 kV
0.15" SOIC-16;
0.3" SOIC-16
IL3685 RS-485/
 PROFIBUS
40 2.5 kV;
6 kV
0.15" SOIC-16;
0.3" SOIC-16

All nine part types are in stock and available for immediate delivery.

 Buy Tranceivers Online

Upcoming Exhibitions

Embedded World
Isolator distributor HY LINE Power Components is exhibiting at the Embedded World exhibition, March 14 to 16 in Nuremberg, Germany in Hall 1 / Stand 170. IsoLoop Isolated Bus Transceivers are popular for embedded applications.

Pi Day Applications

Pi
In honor of Pi Day, 3/14, we’re focussing on applications that make good use of pi this month.

Ampere’s Law

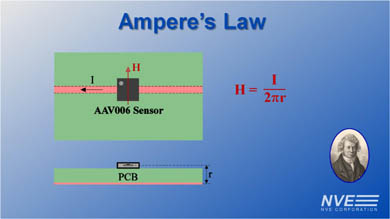

Ampere's law can be used to calculate the magnetic field for a sensor used as a current sensor over a circuit board trace. The law typically simplifies to:


This new video demonstrates Ampere’s law using a unique bipolar analog magnetic sensor. We even use a current-mode power supply that outputs ±pi amps for easy figuring.

JavaScript Angle Calculation
for AAT Angle Sensors

This equation calculates the angle, in degrees, indicated by an AAT sensor’s two outputs:

JavaScript calculation

Since the arctangent is a ratio calculation, the formula cancels power supply variations. And unlike the one-variable arctan function, the two-variable “atan2” provides a full 360-degree angle range.

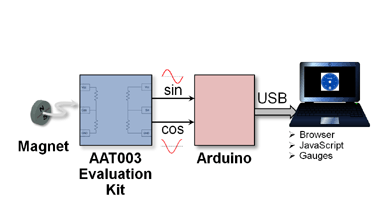

This new video shows the complete, simple AAT graphical user interface:


You can e-mail us for the JavaScript code, and you can order AAT angle sensor Evaluation Kits from our online store.
