AAT006 Low-Field
Angle Sensor |
|
|
|
AAT006-10E Angle
Sensors use Tunneling Magnetoresistance (TMR) technology for operation at magnetic
fields as low as 15 oersteds, allowing an extremely wide airgap tolerance.
The device has a large output without amplification, and high device resistance
for low power. Sine and cosine outputs provide full quadrature.
The new AAT006-10E low-field
angle sensor.
AAT sensors measure angular position based on rotating magnetic fields. Typical
applications include rotary encoders, and motor shaft position sensors, and Internet-of-Things
end nodes.
Key AAT006 features include:
• 1.5 MΩ typical device resistance for low power consumption
• 0.5° maximum angular measurement error (fixed bias)
• 200 mV/V peak-to-peak output signals
• Very wide magnet airgap tolerance
• Sine and cosine outputs for direction detection
• Ultraminiature 2.5 mm x 2.5 mm x 0.8 mm
TDFN6
The sensors detect and maintain absolute position information, and immediately
power up in the correct position after power is restored.
There are now four AAT-Series sensors:
Part
Number |
Typ. Device
Resistance |
Features |
| AAT001 |
1.25 MΩ |
Ultra-low power |
| AAT003 |
40 kΩ |
Ideal for interface to microcontrollers |
| AAT006 |
1.5 MΩ |
Low magnetic
field requirement |
| AAT009 |
6 MΩ |
Ultra-ultra-low
power |
All four part types are in stock and available for immediate delivery.
Demonstrations
Here’s a demonstration of AAT sensors powered by small fruits:
|
|
|
nve.com
|
|
|
|

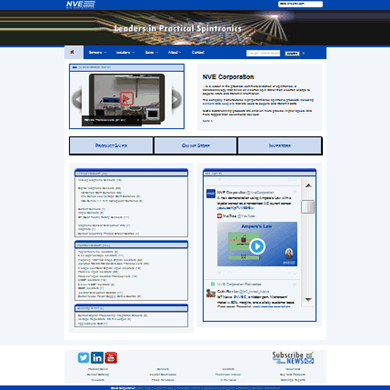

NVE’s new Website debuted recently. The site still has lots of product information,
