NEW!TMR Angle Sensor

The new AAT003-10E angle sensor is a high-output magnetic sensor element for position measurements when a rotating magnetic field is applied.

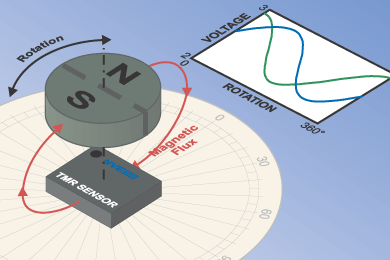

AAT-Series Operation

The new part has the same best-in-class accuracy as the groundbreaking AAT001-10E, but with lower bridge resistance for a relatively low-noise interface to signal-processing circuitry while still maintaining low power operation.

Key features include:
  • Tunneling Magnetoresistance (TMR) technology
  • 0.5 degrees maximum angular measurement error
  • Large output signal without amplification
  • 40 kilohms nominal bridge resistance
  • Wide airgap tolerance
  • Sine and cosine outputs for direction detection
  • Ultraminiature 2.5 mm x 2.5 mm x 0.8 mm TDFN6
  • Not damaged by large magnetic fields

AAT-Series Sensor outputs are proportional to the supply voltage and peak-to-peak output voltages are much larger than other sensor technologies. Typical applications include rotary encoders and motor shaft position sensors.

The other member of the AAT family, the AAT001 Angle Sensor, has 1.25 megohm nominal bridge resistance for microwatt power consumption and is ideal for battery applications.

Product specifications are summarized as follows:

Parameter  Min.   Typ.   Max.   Units
Bridge Resistance
(each resistor; 25°C)
AAT001 600 1250 2500
 AAT003  20 40 60
Peak-to-Peak Output
(25°C)
130 160 mV/V
Angular Measurement
Error (fixed bias)
0.5 Deg.
Required Applied
Magnetic Field Strength
30 200 Oe

Download AAT-Series Datasheets >

Buy Online

Upcoming Exhibitions

Embedded World 2014
Isolator distributor HY LINE Power Components is exhibiting at the Embedded World exhibition, February 25 to 27 in Nuremberg, Germany. IsoLoop Isolated Bus Transceivers are popular for embedded applications.

Reference Design

Buffering Angle Sensors

AAT-Series Angle Sensors can be directly connected to high-impedance analog front ends or other circuitry, or a buffer can be used if necessary for lower impedance circuitry:

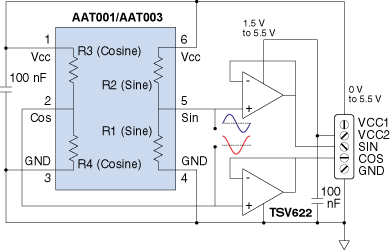

AAT-Series Buffer Reference Circuit
AAT001/AAT003 Buffer Reference Circuit

The op amp minimum supply voltage is 1.5 volts, while the AAT-Series sensors have no minimum. Sensitivity increases proportionately to the sensor supply voltage, as does current consumption.
