    December 2018 Electrifying  News  From  NVE
In This Issue
More Low-Power Isolators


Recent Exhibitions

Quick Links
Sensor Selector Guide

Isolator Selector Guide

Online Store

Contact Us

Document Updates
Analog Sensor Datasheet AAL-Series sensor bandwidth increased to 500 kHz.

ADL-Series Nanopower digital sensor datasheet
even lower power consumption specifications.

New YouTube Videos
Sensors Midwest demonstrations
The world's first smart TMR magnetometer

NVE will be closed Monday, December 24, Tuesday, December 25, Monday, December 31, and Tuesday, January 1.
More Low-Power Isolators
IL01x DiagramsWith the addition of the one-direction two-channel IL011-3E and four-channel IL015E, low-power TMR isolators are now available in the all the popular channel configurations.
Typical IL01x-Series total quiescent current is just 0.3 mA per channel, one-fourth the power of our flagship products.

The new devices use NVE’s patented low-power spintronic Tunneling Magnetoresistance (TMR) technology.

A unique ceramic/polymer composite barrier provides excellent isolation, best-in-class barrier resistance, and virtually unlimited barrier life.

The new parts are low power and provide remarkable performance:
   • 10 Mbps guaranteed maximum data rate
   • No carriers or clocks for low EMI
   • 100 teraohm insulation resistance
   • 2.5 kV isolation
   • 44000 year barrier life
   • -40°C to +100°C

The four-channel versions use NVE’s unique True 8™ wide-body SOIC-16 package with full 8-millimeter creepage in accordance with IEC60601.

Applications include:
   • 4-20 mA loop-powered controls
   • Battery-powered instruments
   • SPI
Five popular IL01x channel configurations are in stock for immediate delivery (click for details and pricing):
   Part #     Transmit/ Receive
Total Supply
    Package          Availability
IL011-3E 2/0 0.6 mA SOIC-8 Now!
IL012-3E 1/1
IL015E 4/0 1.2 mA 0.3" SOIC-16
IL016E 2/2
IL017E 3/1
  *Typical Iq1 + Iq2; Vdd1 = Vdd2 = 3.3V

Download the IL01x Datasheet >
Buy IL01x Isolators Online

New Web Apps for Current-Sensing

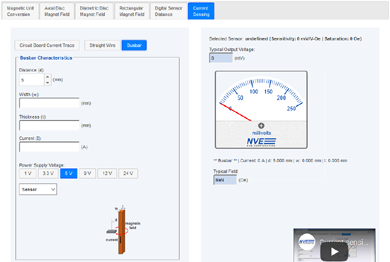

Our wildly popular current-sensing Web app now covers wires and busbars:

Buss bar Web App

NVE’s free, easy-to-use Web apps use finite-element magnetic modelling to make complicated calculations simple.

Existing Web apps include:
   • Disc Magnet Field Strength vs. Distance
   • Disc Magnet Field Strength vs. Distance (Diametric Magnet)
   • Rectangular Magnet Field Strength vs. Distance
   • Digital Sensor Switching vs. Distance
IATF 16949 Conformance
IATF 16949
NVE has earned a letter of conformance in accordance with the automotive certification scheme for IATF 16949.

The letter certifies that NVE has established and applies a Quality Management System for Design and Manufacturing of semiconductor magnetic sensors and isolator components for the automotive industry.

The rigorous IATF 16949 standard stresses continuous improvement with the goal of preventing defects and waste throughout the supply chain.

NVE makes a number of analog, digital, and smart magnetic sensors ideal for automotive applications including proximity sensing, current sensing, rotation sensing, and angle sensing.
Recent Exhibitions
ET/IoT 2018
NVE distributor K.K. ROCKY exhibited NVE sensors and isolators at Embedded Technology & IoT Technology 2018 in Yokohama, Japan.
NVE distributor HY-LINE showed NVE isolators at Wireless Congress:
Systems & Applications
in Munich, Germany.
If you missed the shows you can see some of our demonstrations here.
